PartitionAlloc内存分配器是笔者迄今为止读过的最复杂的内存分配器，大约有3w+行代码。

1 数据结构

1.1 PartitionRoot

PartitionRoot对象是PartitionAlloc内存管理总的对象入口。

partition_allocator/partition_root.hstruct PA_ALIGNAS(64) PA_COMPONENT_EXPORT(PARTITION_ALLOC) PartitionRoot {  Bucket buckets[internal::kNumBuckets] = {};  Bucket sentinel_bucket{};  uintptr_t next_super_page = 0;  uintptr_t next_partition_page = 0;  uintptr_t next_partition_page_end = 0;  SuperPageExtentEntry* current_extent = nullptr;  SuperPageExtentEntry* first_extent = nullptr;  DirectMapExtent* direct_map_list PA_GUARDED_BY(lock_) = nullptr;
   void Init(PartitionOptions);}

buckets是个Bucket类型的数组，它的每个元素代表特定的slot大小。

Init函数用于初始化PartitionAddressSpace以及ThreadCache。

1.2 PartitionAddressSpace

partition_allocator/partition_address_space.hclass PA_COMPONENT_EXPORT(PARTITION_ALLOC) PartitionAddressSpace {  PA_ALWAYS_INLINE static std::pair<pool_handle, uintptr_t> GetPoolAndOffset(      uintptr_t address)；  struct PoolSetup {    union {      struct {        uintptr_t regular_pool_base_address_;        uintptr_t brp_pool_base_address_;        uintptr_t configurable_pool_base_address_;#if BUILDFLAG(ENABLE_PKEYS)        uintptr_t pkey_pool_base_address_;#endif#if PA_CONFIG(DYNAMICALLY_SELECT_POOL_SIZE)        uintptr_t regular_pool_base_mask_;        uintptr_t brp_pool_base_mask_;#if PA_CONFIG(GLUE_CORE_POOLS)        uintptr_t core_pools_base_mask_;#endif#endif  // PA_CONFIG(DYNAMICALLY_SELECT_POOL_SIZE)        uintptr_t configurable_pool_base_mask_;#if BUILDFLAG(ENABLE_PKEYS)        int pkey_;#endif      };
#if BUILDFLAG(ENABLE_PKEYS)      char one_page_[SystemPageSize()];#else      char one_cacheline_[kPartitionCachelineSize];#endif    };static PoolSetup setup_ PA_CONSTINIT;}

setup_字段保存了每个pool的类型和起始地址，通过GetPoolAndOffset来获取。

1.3 AddressPoolManager

PartitionAlloc通过POOL的概念管理内存池，一个进程有kNumPools个类型的pool，注意内存池是对整个进程共有的，不是线程专有。

enum pool_handle : unsigned {  kNullPoolHandle = 0u,
  kRegularPoolHandle,  kBRPPoolHandle,#if BUILDFLAG(HAS_64_BIT_POINTERS)  kConfigurablePoolHandle,#endif
#if BUILDFLAG(ENABLE_PKEYS)  kPkeyPoolHandle,#endif  kMaxPoolHandle};constexpr size_t kNumPools = kMaxPoolHandle - 1;

kBRPPoolHandle用于32位，kPkeyPoolHandle用于x86提供的pkey保护，kRegularPoolHandle和kConfigurablePoolHandle是我们关心的。

Pool依附于AddressPoolManager结构体内：

class PA_COMPONENT_EXPORT(PARTITION_ALLOC) AddressPoolManager {class Pool {   public:uintptr_t address_begin_ = 0;bool TryReserveChunk(uintptr_t address, size_t size);struct {    char pad_[PA_PKEY_ARRAY_PAD_SZ(Pool, kNumPools)] = {};    Pool pools_[kNumPools];    char pad_after_[PA_PKEY_FILL_PAGE_SZ(sizeof(Pool))] = {};} aligned_pools_ PA_PKEY_ALIGN;}void Add(pool_handle handle, uintptr_t address, size_t length);uintptr_t Reserve(pool_handle handle, uintptr_t requested_address, size_t length);}

Reserve函数通过mmap为pool保留一段特定大小的内存。

Add函数初始化一个pool的地址。

void AddressPoolManager::Add(pool_handle handle, uintptr_t ptr, size_t length) {  Pool* pool = GetPool(handle);  PA_CHECK(!pool->IsInitialized());  pool->Initialize(ptr, length);}
void AddressPoolManager::Pool::Initialize(uintptr_t ptr, size_t length) {  address_begin_ = ptr;  address_end_ = ptr + length;}

Add函数通过上面介绍的PartitionAddressSpace:init对所有的pool进行初始化赋值：

void PartitionAddressSpace::Init() {  setup_.regular_pool_base_address_ =      AllocPages(regular_pool_size, regular_pool_size,                 PageAccessibilityConfiguration(                     PageAccessibilityConfiguration::kInaccessible),                 PageTag::kPartitionAlloc, regular_pool_fd);
  AddressPoolManager::GetInstance().Add(      kRegularPoolHandle, setup_.regular_pool_base_address_, regular_pool_size);}

1.4 PartitionBucket

partition_allocator/partition_bucket.hstruct PartitionBucket {  SlotSpanMetadata<thread_safe>* active_slot_spans_head;
  SlotSpanMetadata<thread_safe>* empty_slot_spans_head;  SlotSpanMetadata<thread_safe>* decommitted_slot_spans_head;

  uint32_t num_full_slot_spans : 24;  PA_ALWAYS_INLINE uintptr_t AllocNewSuperPageSpan(      PartitionRoot<thread_safe>* root,      size_t super_page_count,      unsigned int flags) PA_EXCLUSIVE_LOCKS_REQUIRED(root->lock_);  PA_ALWAYS_INLINE SlotSpanMetadata<thread_safe>* AllocNewSlotSpan(      PartitionRoot<thread_safe>* root,      unsigned int flags,      size_t slot_span_alignment) PA_EXCLUSIVE_LOCKS_REQUIRED(root->lock_);  PA_ALWAYS_INLINE uintptr_t AllocNewSuperPage(PartitionRoot<thread_safe>* root,                                               unsigned int flags)      PA_EXCLUSIVE_LOCKS_REQUIRED(root->lock_);
  PA_ALWAYS_INLINE void InitializeSlotSpan(      SlotSpanMetadata<thread_safe>* slot_span);}

一个bucket用于分配一个特定大小的内存块。Bucket由一个个类型为SlotSpanMetadata的slotspan链接起来，active_slot_spans_head链接当前活跃的slotspan，即半满状态的slotspan，empty_slot_spans_head链接为空的slotspan，decommitted_slot_spans_head为一种特殊的空slotspan，它里面的内存页处于decommitted状态，这是典型的slab结构。

1.5 SlotSpanMetadata

partition_allocator/partition_page.hstruct SlotSpanMetadata { private:  PartitionFreelistEntry* freelist_head = nullptr;
 public:  SlotSpanMetadata<thread_safe>* next_slot_span = nullptr;  PA_ALWAYS_INLINE PartitionFreelistEntry* PopForAlloc(size_t size);
  PA_ALWAYS_INLINE PartitionFreelistEntry* get_freelist_head() const {    return freelist_head;  }  PA_ALWAYS_INLINE void SetFreelistHead(PartitionFreelistEntry* new_head);}

SlotSpanMetadata是所有slot的管理结构，每个slot是由PartitionFreelistEntry表示。

partition_allocator/partition_freelist_entry.hclass PartitionFreelistEntry {  PA_ALWAYS_INLINE void SetNext(PartitionFreelistEntry* entry) {    encoded_next_ = EncodedPartitionFreelistEntryPtr(entry);  }  EncodedPartitionFreelistEntryPtr encoded_next_;}

SetNext设置下一个next entry。

class EncodedPartitionFreelistEntryPtr { private:  PA_ALWAYS_INLINE constexpr explicit EncodedPartitionFreelistEntryPtr(      std::nullptr_t)      : encoded_(Transform(0)) {}  PA_ALWAYS_INLINE explicit EncodedPartitionFreelistEntryPtr(void* ptr)      : encoded_(Transform(reinterpret_cast<uintptr_t>(ptr))) {}
  PA_ALWAYS_INLINE PartitionFreelistEntry* Decode() const {    return reinterpret_cast<PartitionFreelistEntry*>(Transform(encoded_));  }
  PA_ALWAYS_INLINE constexpr uintptr_t Inverted() const { return ~encoded_; }
  PA_ALWAYS_INLINE constexpr void Override(uintptr_t encoded) {    encoded_ = encoded;  }
  PA_ALWAYS_INLINE constexpr explicit operator bool() const { return encoded_; }#if defined(ARCH_CPU_BIG_ENDIAN)    uintptr_t transformed = ~address;#else    uintptr_t transformed = ReverseBytes(address);#endif    return transformed;  }
  uintptr_t encoded_;
  friend PartitionFreelistEntry;};

EncodedPartitionFreelistEntryPtr将entry进行了一些编码转换。

ProvisionMoreSlotsAndAllocOne用来初始化一个slotspan。

PA_ALWAYS_INLINE uintptr_tPartitionBucket<thread_safe>::ProvisionMoreSlotsAndAllocOne(    PartitionRoot<thread_safe>* root,SlotSpanMetadata<thread_safe>* slot_span) {  size_t num_slots = slot_span->num_unprovisioned_slots;

需要扩展的slot数目。

uintptr_t slot_span_start =      SlotSpanMetadata<thread_safe>::ToSlotSpanStart(slot_span);

通过slot_span换算出第一个slot的内存地址。

PartitionFreelistEntry* prev_entry = nullptr;  uintptr_t next_slot_end = next_slot + slot_size;  size_t free_list_entries_added = 0;  while (next_slot_end <= commit_end) {    void* next_slot_ptr;    if (PA_LIKELY(slot_size <= kMaxMemoryTaggingSize)) {      next_slot_ptr = TagMemoryRangeRandomly(next_slot, slot_size);    } else {      next_slot_ptr = reinterpret_cast<void*>(next_slot);    }    auto* entry = PartitionFreelistEntry::EmplaceAndInitNull(next_slot_ptr);    if (!slot_span->get_freelist_head()) {      PA_DCHECK(!prev_entry);      PA_DCHECK(!free_list_entries_added);      slot_span->SetFreelistHead(entry);    } else {      PA_DCHECK(free_list_entries_added);      prev_entry->SetNext(entry);    }    next_slot = next_slot_end;    next_slot_end = next_slot + slot_size;    prev_entry = entry;  }}

循环调用SetNext填充下一个entry。

1.6 ThreadCache

每个线程有一个独立的ThreadCache，不需要上锁，以下是笔者提取出来的关键数据结构：

partition_allocator/thread_cache.hclass PA_COMPONENT_EXPORT(PARTITION_ALLOC) ThreadCache {static void Init(PartitionRoot<>* root);    static ThreadCache* Get() {#if PA_CONFIG(THREAD_CACHE_FAST_TLS)    return internal::g_thread_cache;#else    return reinterpret_cast<ThreadCache*>(        internal::PartitionTlsGet(internal::g_thread_cache_key));#endistatic ThreadCache* Create(PartitionRoot<>* root);PA_ALWAYS_INLINE uintptr_t GetFromCache(size_t bucket_index,                                          size_t* slot_size);void FillBucket(size_t bucket_index);ThreadCache* next_ PA_GUARDED_BY(ThreadCacheRegistry::GetLock());ThreadCache* prev_ PA_GUARDED_BY(ThreadCacheRegistry::GetLock());}

线程通过RegisterThreadCache注册自己的cache结构，每个线程的cache通过双向链表链接。

GetFromCache函数从线程的当前cache中选取一个slot出来。

PA_ALWAYS_INLINE uintptr_t ThreadCache::GetFromCache(size_t bucket_index,                                                     size_t* slot_size) {  auto& bucket = buckets_[bucket_index];  internal::PartitionFreelistEntry* entry = bucket.freelist_head;  internal::PartitionFreelistEntry* next =      entry->GetNextForThreadCache<true>(bucket.slot_size);  bucket.freelist_head = next;}

直接从bucket.freelist_head取出当前空闲的entry地址，并设置下一个空闲的entry。

FillBucket函数填充cache的bucket对象。

void ThreadCache::FillBucket(size_t bucket_index) {  Bucket& bucket = buckets_[bucket_index];  int count = std::max(      1, bucket.limit.load(std::memory_order_relaxed) / kBatchFillRatio);  for (int i = 0; i < count; i++) {    uintptr_t slot_start = root_->AllocFromBucket(        &root_->buckets[bucket_index],        AllocFlags::kFastPathOrReturnNull | AllocFlags::kReturnNull,        root_->buckets[bucket_index].slot_size /* raw_size */,        internal::PartitionPageSize(), &usable_size, &is_already_zeroed);      PutInBucket(bucket, slot_start);  }

循环调用AllocFromBucket分配内存，调用PutInBucket填充进去。

PutInBucket函数将slot写入cache的buket对象里。

A_ALWAYS_INLINE void ThreadCache::PutInBucket(Bucket& bucket,                                               uintptr_t slot_start) {  slot_size_remaining_in_16_bytes = std::min(      slot_size_remaining_in_16_bytes, distance_to_next_cacheline_in_16_bytes);
  static const uint32_t poison_16_bytes[4] = {0xbadbad00, 0xbadbad00,                                              0xbadbad00, 0xbadbad00};#if PA_HAS_BUILTIN(__builtin_assume_aligned)  void* slot_start_tagged = __builtin_assume_aligned(      internal::SlotStartAddr2Ptr(slot_start), internal::kAlignment);#else  void* slot_start_tagged = internal::SlotStartAddr2Ptr(slot_start);#endif  uint32_t* address_aligned = static_cast<uint32_t*>(slot_start_tagged);  for (int i = 0; i < slot_size_remaining_in_16_bytes; i++) {    memcpy(address_aligned, poison_16_bytes, sizeof(poison_16_bytes));    address_aligned += 4;  }

如果是x86_64架构，会将slot填充一些固定的posion值，防止UAF漏洞。作者在注释中说明只在cache中加入posion是为了提高性能。那么另一个问题arm64架构不使用cache posion的原因可能是内存大小问题了。

auto* entry = internal::PartitionFreelistEntry::EmplaceAndInitForThreadCache(      slot_start, bucket.freelist_head);bucket.freelist_head = entry;}

将slot写入bucket.freelist_head。

2 内存结构

2.1 DirectMapped

对于buckets数组中的内存块大小，PartitionAlloc根据其大小，可以直接使用叫做DirectMapped的技术，它要求待分配的内存大小不能超过2>>31 - 2mb大小，并且这部分内存直接使用mmap映射，使用ReservationOffsetTable对其进行引用。

partition_allocator/reservation_offset_table.hclass PA_COMPONENT_EXPORT(PARTITION_ALLOC) ReservationOffsetTable {  struct _ReservationOffsetTable {uint16_t offsets[kReservationOffsetTableLength] = {};  }  struct _PaddedReservationOffsetTables {    char pad_[PA_PKEY_ARRAY_PAD_SZ(_ReservationOffsetTable, kNumPools)] = {};    struct _ReservationOffsetTable tables[kNumPools];    char pad_after_[PA_PKEY_FILL_PAGE_SZ(sizeof(_ReservationOffsetTable))] = {};  };  static PA_CONSTINIT _PaddedReservationOffsetTables      padded_reservation_offset_tables_ PA_PKEY_ALIGN;}

offsets数组保存了一个DirectMapped内存块在对应的pool中的偏移。

PA_ALWAYS_INLINE uint16_t* GetReservationOffsetTable(pool_handle handle) {  PA_DCHECK(kNullPoolHandle < handle && handle <= kNumPools);  return ReservationOffsetTable::padded_reservation_offset_tables_      .tables[handle - 1]      .offsets;}
PA_ALWAYS_INLINE uint16_t* ReservationOffsetPointer(pool_handle pool,                                                    uintptr_t offset_in_pool) {  size_t table_index = offset_in_pool >> kSuperPageShift;  PA_DCHECK(table_index <            ReservationOffsetTable::kReservationOffsetTableLength);  return GetReservationOffsetTable(pool) + table_index;}

每个DirectMapped内存块通过双向链表链接，保存在root->direct_map_list。

DirectMapped内存结构如下：

2.2 Normal Map

SlotSpan中的一个slot通过FromAddr函数可以转为对应的SlotSpanMetadata管理结构。

PA_ALWAYS_INLINE PartitionPage<thread_safe>*PartitionPage<thread_safe>::FromAddr(uintptr_t address) {  uintptr_t super_page = address & kSuperPageBaseMask;  uintptr_t partition_page_index =      (address & kSuperPageOffsetMask) >> PartitionPageShift();  return PartitionSuperPageToMetadataArea<thread_safe>(super_page) +         partition_page_index;}

3 内存分配算法

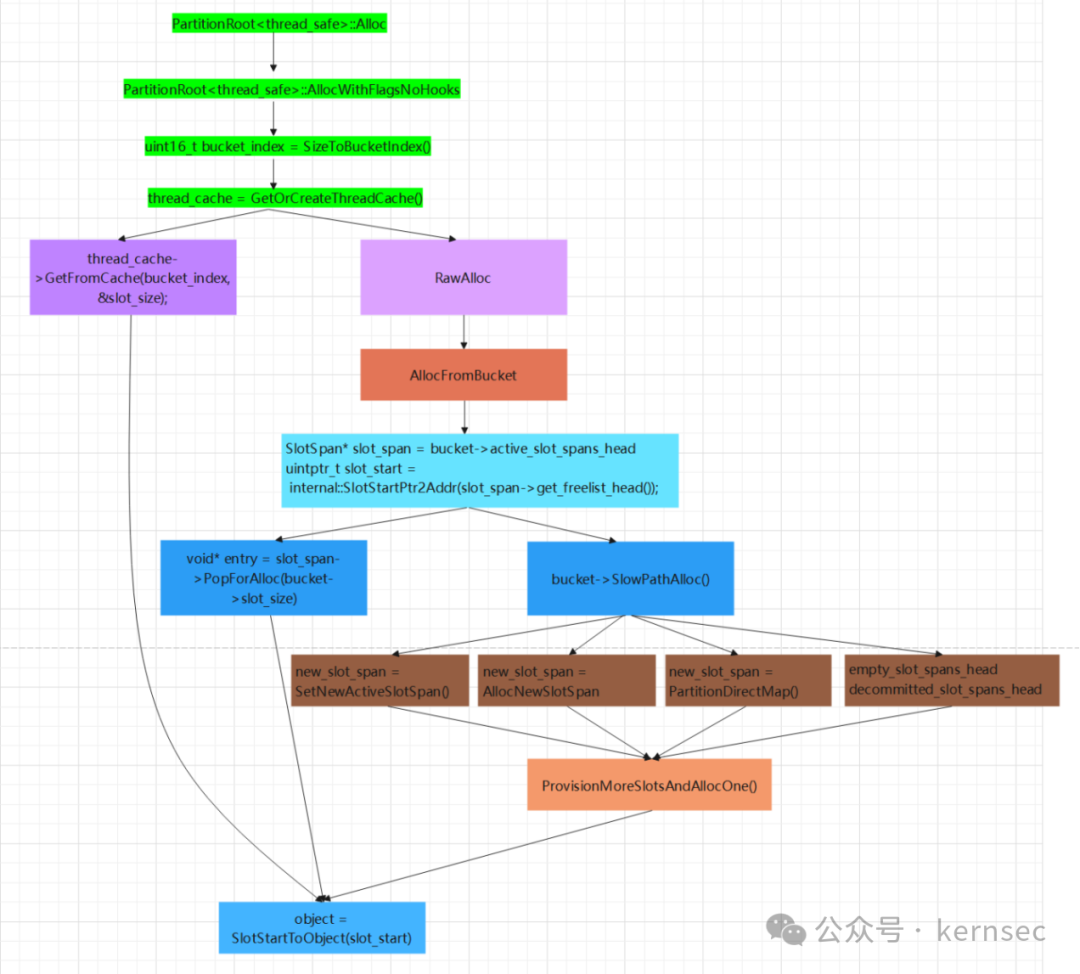

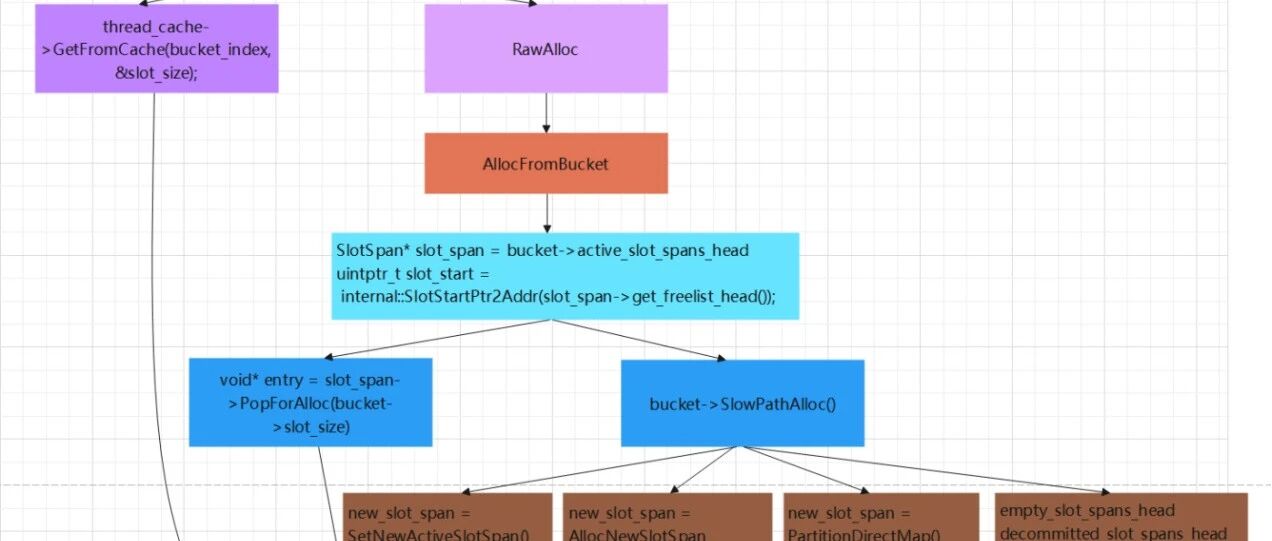

话不多说，直接上图：

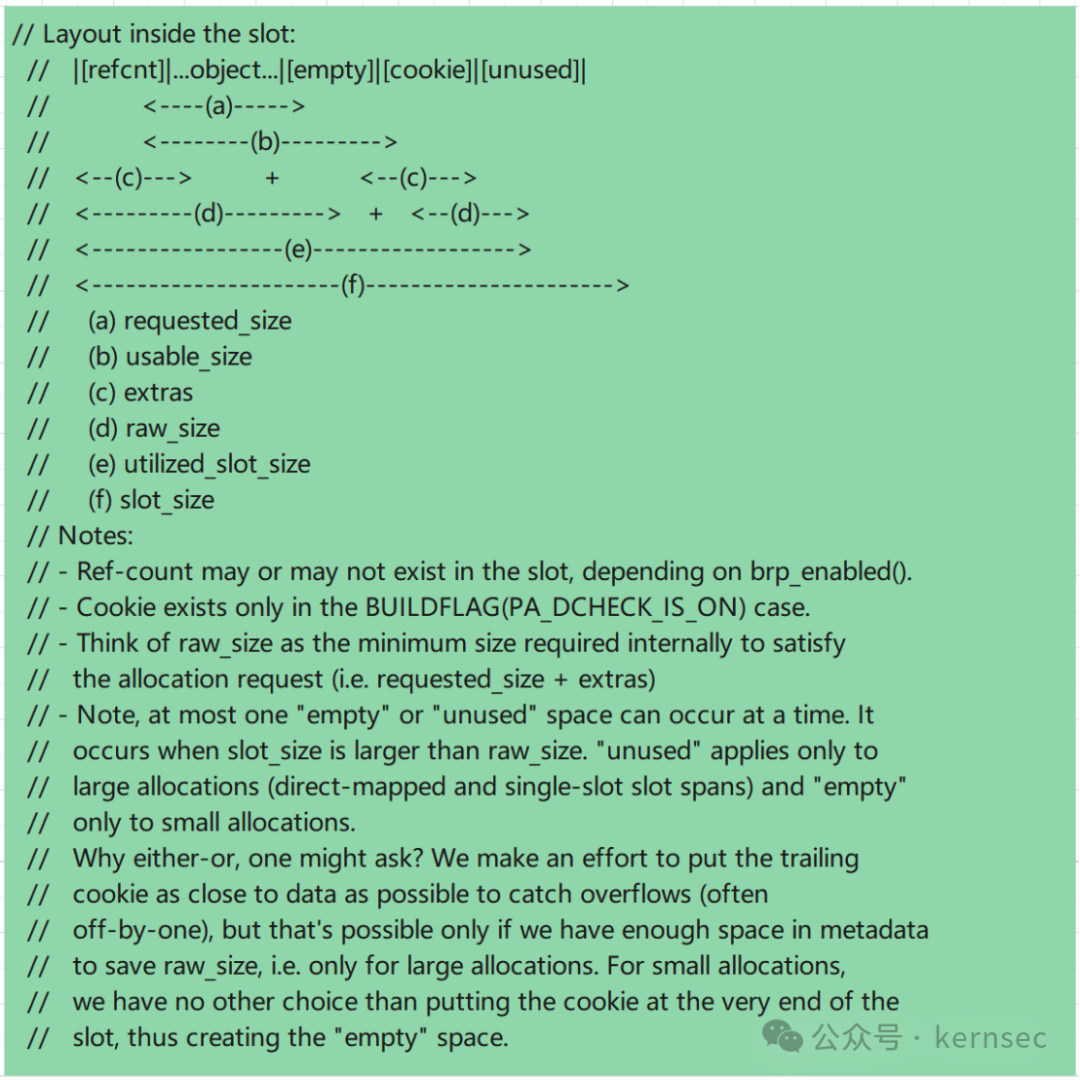

最终分配好的object在内存中的结构为：
