SonarQube实现自动化代码扫描

# 解决依赖，SonarQube7.9必须是java11才可以运行yum install java-11-openjdk.x86_64 java-11-openjdk-devel.x86_64 -y
# 安装PG数据库，新版本已经不支持MySQL了wget https://download.postgresql.org/pub/repos/yum/reporpms/EL-7-x86_64/pgdg-redhat-repo-latest.noarch.rpmrpm -ivh pgdg-redhat-repo-latest.noarch.rpmyum install postgresql10.x86_64 postgresql10-server.x86_64 postgresql10-libs.x86_64 postgresql10-libs.x86_64 postgresql-jdbc.noarch -y
# 初始化PG/usr/pgsql-10/bin/postgresql-10-setup initdb
# 允许本机连接vim /var/lib/pgsql/10/data/pg_hba.conf
# 启动PGsystemctl enable postgresql-10.servicesystemctl start postgresql-10.service
# 配置PGsu - postgrespsql

# 将template1取消设置为模板UPDATE pg_database SET datistemplate = FALSE WHERE datname = 'template1';
# 删除template1DROP DATABASE template1;
# 重新创建template1，并设置默认编码CREATE DATABASE template1 WITH TEMPLATE = template0 ENCODING = 'UTF8';
# 将template1重新设置为模板UPDATE pg_database SET datistemplate = TRUE WHERE datname = 'template1';
# 创建用户create user sonarqube with password 'sonarqube';alter role sonarqube login;
# 创建数据库create database sonarqube encoding='UTF8' owner sonarqube;

# 创建用户useradd sonarqubepasswd sonarqubesu - sonarqube
# 安装SonarQubewget https://binaries.sonarsource.com/Distribution/sonarqube/sonarqube-8.0.zipunzip sonarqube-8.0.zip && cd sonarqube-8.0
# 修改配置文件vim /home/sonarqube/sonarqube-8.0/conf/sonar.properties

sonar.jdbc.username=sonarqubesonar.jdbc.password=sonarqubesonar.jdbc.url=jdbc:postgresql://127.0.0.1/sonarqube

# 配置Java版本# 由于8.0需要Java11，但是安装PG10的时候系统会默认安装Java1.8，所以需要配置Java地址vim /home/sonarqube/sonarqube-8.0/conf/wrapper.conf

# 我是yum安装的java11，如果大家是配置或者编译的需要使用对应的java地址wrapper.java.command=/usr/lib/jvm/java-11-openjdk-11.0.6.10-1.el7_7.x86_64/bin/java

# 启动服务./bin/linux-x86-64/sonar.sh start访问：http://10.10.10.12:9000，账号密码：admin/admin。

[1]: max file descriptors [4096] for elasticsearch process is too low, increase to at least [65535][2]: max virtual memory areas vm.max_map_count [65530] is too low, increase to at least [262144]

vim /etc/sysctl.conf

# 添加如下内容vm.max_map_count=655360

# 立即生效sysctl -p
vim /etc/security/limits.conf

# 添加如下内容*       soft    nofile  65536*       hard    nofile  65536
# limits不需要重启，但是需要重新登录

# 下载SonarScannerwget https://binaries.sonarsource.com/Distribution/sonar-scanner-cli/sonar-scanner-cli-4.2.0.1873-linux.zip
unzip sonar-scanner-cli-4.2.0.1873-linux.zip -d /home/sonarqube/

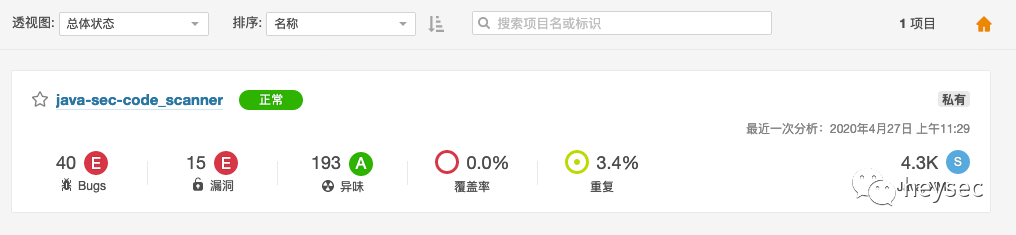

/home/sonarqube/sonar-scanner-4.2.0.1873-linux/bin/sonar-scanner -Dsonar.host.url=http://127.0.0.1:9000 -Dsonar.login=68bec86cee8ec9a9ad8621592670c9939e6ba71e -Dsonar.projectKey=java-sec-code_scanner -Dsonar.java.binaries=/home/sonarqube/projects/java-sec-code

mvn clean package -DskipTests

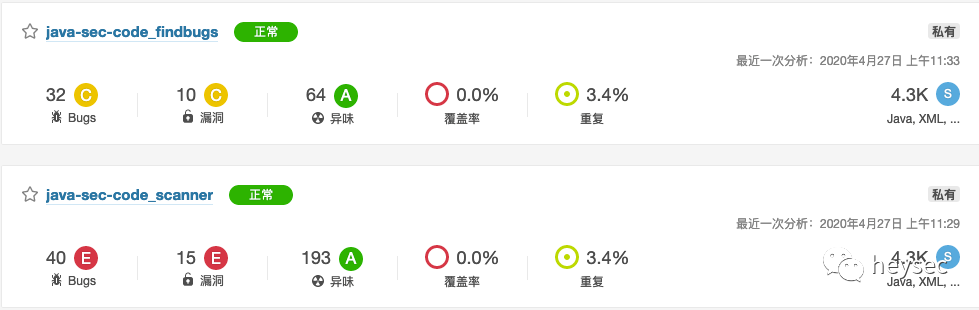

/home/sonarqube/sonar-scanner-4.2.0.1873-linux/bin/sonar-scanner -Dsonar.host.url=http://127.0.0.1:9000 -Dsonar.login=68bec86cee8ec9a9ad8621592670c9939e6ba71e -Dsonar.projectKey=java-sec-code_findbugs -Dsonar.java.binaries=/home/sonarqube/projects/java-sec-code

# 不更新漏洞库执行扫描/home/sonarqube/dependency-check/bin/dependency-check.sh -n
# 只更新漏洞库库，不执行扫描/home/sonarqube/dependency-check/bin/dependency-check.sh --updateonly
# 使用代理更新漏洞库/home/sonarqube/dependency-check/bin/dependency-check.sh --updateonly --proxyserver host --proxyport port
# 编译项目mvn clean package -DskipTests
# 生成xml报告/home/sonarqube/dependency-check/bin/dependency-check.sh -s /home/sonarqube/projects/java-sec-code/target/java-sec-code-1.0.0.jar -f XML -o /home/sonarqube/reports/java-sec-code-report.xml
# 在5.3.2 版本中，小B遇到了一个坑就是第一项执行DependencyCheck时，当执行到 Central Analyzer 分析时非常缓慢（由于网络原因导致的），可以使用--disableCentral禁用，但是官方文档中不推荐禁用，所以只能在执行是使用代理或调整网络来解决

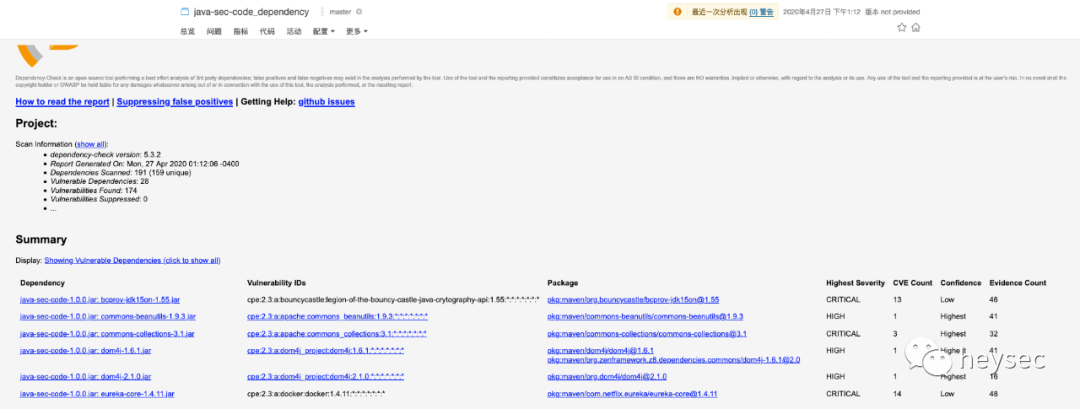

# 生成html报告/home/sonarqube/dependency-check/bin/dependency-check.sh -s /home/sonarqube/projects/java-sec-code/target/java-sec-code-1.0.0.jar -f HTML -o /home/sonarqube/reports/java-sec-code-report.html

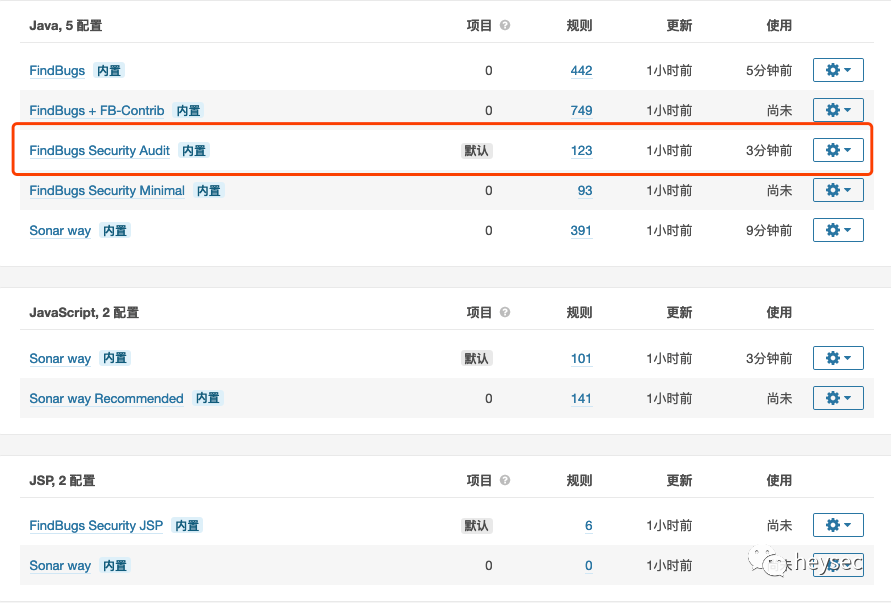

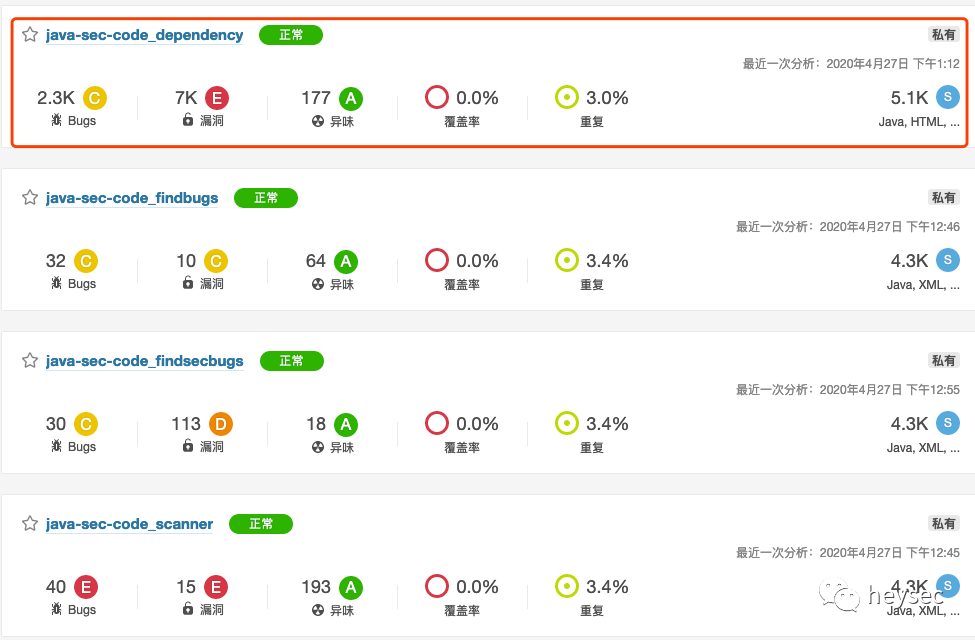

# 将报告导入SonarQube并执行SonarScanner扫描，这里我们使用的是FindBugs Security Audit审计规则/home/sonarqube/sonar-scanner-4.2.0.1873-linux/bin/sonar-scanner -Dsonar.host.url=http://127.0.0.1:9000 -Dsonar.login=68bec86cee8ec9a9ad8621592670c9939e6ba71e -Dsonar.projectKey=java-sec-code_dependency -Dsonar.java.binaries=/home/sonarqube/projects/java-sec-code -Dsonar.dependencyCheck.reportPath=/home/sonarqube/reports/java-sec-code-report.xml -Dsonar.dependencyCheck.htmlReportPath=/home/sonarqube/reports/java-sec-code-report.html

stages:  - sast
sast:  stage:sast  script:    - mvn clean package -DskipTests # 编译项目    - mkdir $PWD/reports # 创建报告目录    - /home/gitlab-runner/dependency-check/bin/dependency-check.sh -s $PWD/ -f XML -o $PWD/reports/dependency-check-report.xml # 执行扫描，并生成xml报告    - /home/gitlab-runner/dependency-check/bin/dependency-check.sh -s $PWD/ -f HTML -o $PWD/reports/dependency-check-report.html # 执行扫描，并生成html报告    - sonar-scanner -Dsonar.host.url=http://10.10.10.12:9000 -Dsonar.login=token -Dsonar.projectKey=$CI_PROJECT_NAME:$CI_COMMIT_REF_NAME -Dsonar.java.binaries=$PWD -Dsonar.dependencyCheck.reportPath=$PWD/reports/dependency-check-report.xml -Dsonar.dependencyCheck.htmlReportPath=$PWD/reports/dependency-check-report.html # 执行扫描，并将报告传输给SonarQube  tags:    - security

import requests
def get_vul(project_name):    url = "http://172.16.26.13:9000/api/issues/search?project=%s&types=VULNERABILITY" % project_name    vulnerability_number = requests.get(url,auth=('admin','admin')).json()['paging']['total']
    for row in requests.get(url,auth=('admin','admin')).json()['issues']:        if row['status'] == "OPEN":            if row['severity'] == "MAJOR" or row['severity'] == "CRITICAL" or row['severity'] == "BLOCKER":                alarm_data = ""            else:                pass        else:            pass
    print("漏洞数量: ", vulnerability_number)

if __name__ == '__main__':    project_name = "java-sec-code_dependency"    get_vul(project_name)

sonar.jdbc.url=jdbc:mysql://address:3306/sonar?useUnicode=true&characterEncoding=utf8

ERROR: Unable to load component class org.sonar.scanner.report.MetadataPublisherERROR: Caused by: Unable to load component class org.sonar.scanner.rule.QualityProfiles
